EXCITO-B | 5-Stage Water Filtration System with Ultrafiltration (UF) membrane
The 5-Stage EXCITO-B water filtration system by AquaFilter is a multi-stage under the sink water filtration system featuring hollow fiber ultrafiltration (UF) 0.01 micron membrane as well as sediment and coconut carbon absorption pre-filtration stages. System is equipped with modern in-line cartridges which allow quick and easy replacement. Through an accurate combination of pre-filtration, water softening, Granular Activated Carbon with special KDF® Media and Ultrafiltration treatment it ensures a continuous supply of clean and fresh drinking water.
The system offers a high end fit and finish with a space saving design, zero-noise operation and high clean water production rate. A perfect choice for any household willing to contribute to a better environment with fewer bottles in the landfills in reward for a safer and cleaner drinking water right at the kitchen sink.
Advantages
- Offers high quality water filtration
- Compact and modern slim design
- Quick installation & Quick-change filters
- Easy connection to the main water supply
- Covers minimal space under the kitchen counter
- Manufactured in the EU
- Installation kit, worldwide tee-adapter valve and premium designer faucet are included
- Removes a variety of pollutants from the main water supply without affecting the beneficial elements of the drinking water
ADDITIONAL INFO
The EXCITO-B ultrafiltration system with his slim design (only 10cm wide) delivers virtually unlimited amount of safe and clean water right at your home. No need to transport and dispose of bottled water any more! Great for drinking, ice makers, beverages, coffee & tea, food preparation & cooking, sports, etc.
The EXCITO-B water system features a 5-step high quality filtration as follows: Sediment Removal, Chlorine Removal, pH Adjustment, Heavy Metal Removal, Bacteria Removal.
The following five pre-installed cartridges are being used in the 5-stage EXCITO-B water system to help produce safe and clean water:- Stage 1 (AIPRO-20M-QM): The cartridge is made of polypropylene, which effectively stops mechanical sediments with a diameter of 20 µm. The cartridge is highly effective for filtering sand, clay, rust and other sediments.
- Stage 2 (AISTRO-2-QM): The cartridge contains specialty water softening-iron removing filtration media. Reduces the water hardness and lowers the concentration of iron.
- Stage 3 (AICRO-3-QM): Granulated activated carbon cartridge made of the high grade activated coconut carbon. It is designed to remove up to 99% of chlorine, sediments and organic contaminants. It also improves the taste and aroma of water.
- Stage 4 (AICRO-4-QM): Granulated activated carbon cartridge with KDF media made of the high grade activated coconut carbon. It is designed to remove up to 99% of chlorine, sediments and organic contaminants. In addition, a special filtration media removes heavy metals such as lead, nickel, chromium and many others. It also improves the taste and aroma of water.
- Stage 5 (TLCHF-2T): The hollow fiber ultrafiltration membrane removes mechanical impurities such as rust, sand, silt, suspended solids and some bacteria and viruses. Offered in the new, transparent PET housing.
Double Carbon
The EXCITO-B uses carbon filters in two stages with KDF55 technology (combining the advantages of both) to ensure best possible absorption and longest service life. This leads to a much better and consistent purification as compared to other multi-stage purifiers on the market.
Hollowfiber Membrane
At the final stage of purification, the ultrafiltration cartridge is used with a hollowfiber membrane having the pore size of 0.01 μm, which is a reliable barrier not only for most pollutants but also for bacteria and viruses.
Quick-change FiltersNo mess, quick and easy filter change thanks to a new “branch pipe – push-to-connect fitting” fixture. Easy maintenance and clean, practically new system after each filter replacement.
SPECIFICATIONS
Tech Specs
- Allowable water temperature: +5 - +45 ° С
- Operating water temperature: +5 - +35 ° С
- Recommended supply water pressure: 3 bar
- Dimensions (WxDxH): 360x100x438mm
- Weight (net, without water): 4 kg
- Flow rate: 1.9L/min
- Installed cartridges: AIPRO-20-QM, AISTRO-2-QM, AICRO-3-QM, AICRO-4-QM, TLCHF-2T UF membrane
- Water source: tap water supply, chlorinated or non-chlorinated, bacteriologically safe
- Indoor use only
- Supply water pH range: 4.0-11.0
EXCITO-B includes 5 pre-installed filter cartridges as listed below that provide advanced multi-stage water filtration for most needs and ultimate customer’s satisfaction.
- Sediment removal (AIPRO-20M-QM)
- Water softening and iron removal (AISTRO-2-QM)
- Chlorine and organic matter removal (AICRO-3-QM)
- Reduces heavy metals concentration (AICRO-4-QM)
- Bacteria and viruses elimination and small particles removal (TLCHF-2T)
In each filter cartridge, Aquafilter uses innovative BACINIX nanosilver technology. providing antibacterial protection.
Filter Replacement (longetivity)*:
- Replace every 6-12 months: AIPRO-20-QM, AISTRO-2-QM, AICRO-3-QM, AICRO-4-QM.
- Replace every 12 months: TLCHF-2T UF membrane
* Depends on the filtered water volume produced, its quality and level of contamination.
WARNING: The system should not be used with biologically contaminated water or water of unknown origin.
CERTIFICATIONS
Conforms to all applicable standards and regulations including Council Directive 98/83/EC on the quality of water intended for human consumption, etc.

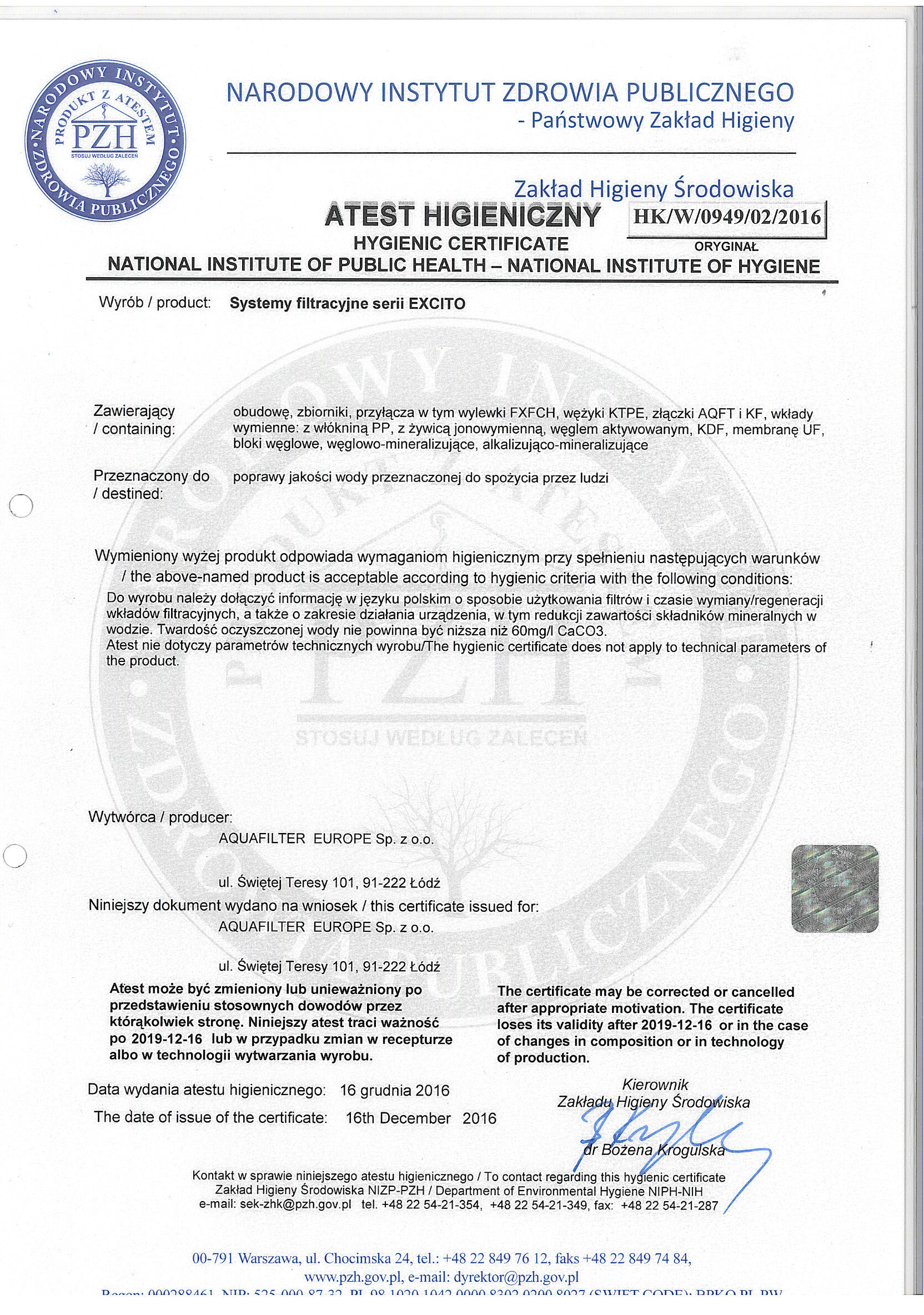

The production of the filters has been certified under the international standards ISO9001:2008 and ISO14001:2008.
KEY FEATURES
- Clean and safe drinking water right at your sink.
- No need to transport and dispose of bottled water anymore
- High-quality multi-stage filtration including double-carbon, and ultrafiltration hollow fiber membrane
- Quick-change filters for easy maintenance
- Compact and modern slim design
- Factory pre-installed filters,
- Worldwide tee-adapter valve,
- Push-to-connect quick fittings,
- Premium designer faucet
PACKAGE CONTENT
- FXFCH17-C faucet
- Feed water connector 1/2"
- Tubing
- Teflon tape roll,
- Instruction & installation manual
- Modern housing box that includes the following pre-installed cartridges:
- AIPRO-20-QM
- AISTRO-2-QM
- AICRO-3-QM
- AICRO-4-QM cartridges
- TLCHF-2T UF membrane
WEIGHT & SIZE
Weight (without water and tubing): ~4 kg
Size (WxDxH): 360mm x 100mm x 438mm
WARRANTY
3 years worldwide limited warranty (+ local regulations if applicable).
Product must be installed only by trained service professionals. Only original replacement parts, filter cartridges and accessories made by manufacturer may be used.
