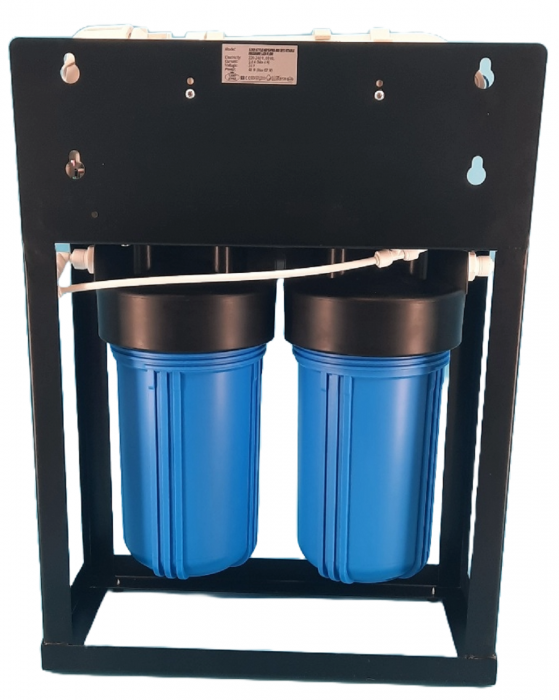

KRAUSEN PRO SERIES 800GPD 10"BIG BLUE DIRECT FLOW R.O WATER SYSTEM
Introducing the new KRAUSEN DIRECT FLOW (TANKLESS) PRO SERIES 800GPD REVERSE OSMOSIS (R.O) WATER SYSTEM WITH HIGH PERFORMANCE PRESSURE PUMP & 10"BB CARTRIDGES:
>1x 800GPD R.O membrane
>2x 10" BIG BLUE Housings with sediment + carbon block
>High pressure pump with stable pressure
>Smart LCD controller
>Leak detector
>Permeate water flow monitoring
It includes 2 high quality BB10 pre-filters (5um sediment + 10um carbon block cartridges) that prepare the water for the 800GPD high-performance reverse osmosis membrane that is responsible for the production of around 2L/min of extremely clean drinking water*. The taste of the purified water produced is further complemented by a granular post carbon filter for an added purification and good taste. The main advantage of this system over other reverse osmosis water purifiers is that it works without a tank, so stagnant water is not a problem anymore. Also, the well-chosen high pressure pump with stable pressure & the R.O membrane combination has significantly improved wastewater discharge (2:1).
The system can remove up to ~95 % of the contaminants from water using one of the world’s best water treating technology. Due to its 4-stage filtration system, it easily removes a significant amount of chlorine and chlorine derivatives, odor and bad taste, viruses and bacteria and many other harmful substances such as heavy metal ions, total dissolved solids (TDS) from tap water making it tasty, fresh and vital.
A blending/mineralisation valve can be added into the system (additional cost of 70€) that can help adjust the permeate water TDS levels to a desired value, depending from the customer's needs. A TDS value between 100-200 ppm is recommended for an excellent quality drinking water.
*The quality of the purified water produced depends on water pressure, temperature and level of contamination as well.
ADDITIONAL INFO
FILTER TECHNOLOGY:
1. BIG BLUE 5UM SEDIMENT CARTRIDGE – Blocks sediment, dust, plastic particles, etc. Replace /12months.
2. BIG BLUEACTIVATED COCONUT CARBON BLOCK 10UM - Maximum Removal of Chlorine & Organic Compounds - Replace /12 months.
3. 800GPD REVERSE OSMOSIS ELEMENT – Purifies Water from 97% of Dissolved Impurities. Replace /24-36 months.
4. GRANULAR ACTIVATED POST-CARBON FROM COCONUT SHELL – Improves Taste of the Purified Water. Replace /12 months.
SMART INDICATION OF FILTER STATUS: An indication on the front panel of the filter reminds of the need to change the replacement filters. Additional sound indication for warnings such as low water pressure / no water.
AUTOMATIC MEMBRANE CLEANING: The membrane runs a self-rinse mode after 20 minutes of TOTAL usage or 12H in STANDBY MODE.
LEAKAGE PROTECTION: The filter automatically shuts off the inlet water if there are any leaks inside the filter.
Pressure Switches: The system is equipped with pressure switches. The low pressure switch shuts off the pump when there is no inlet water or its pressure is too low. The high pressure switch shuts off the pump when the filtered water faucet is turned off.
Booster pump: it offers the advantages of favorable wastewater-treated water ratio (about 2:1), operation in places with lower water pressure (smaller settlements, homesteads, 10th floor) and offers faster tank filling.
Faucet: Designer faucet for filtered water is included and usually mounted on the sink deck or countertop for dispensing the clean, filtered water from the filtered water outlet of the main R.O. unit.
Drain Saddle: Fits a standard 1.5” diameter drain pipe to drain the waste water from the drain outlet of the pump box.
TDS blending/mineralisation valve: Many times there is the desire to raise the total dissolved solids (TDS) of our filtered water. This is due to the fact that the purified water produced by the reverse osmosis water systems have usually a TDS value of ~25-35 ppm. For the best drinking water quality and personal well-being it is recommended that the TDS value should be ~100-200ppm. To achieve a TDS value in that range we use a TDS blending (mixing) valve. The set-up of the blending valve is recommended to be set by a specialist when installing the water purifier.
TDS blending is incredibly simple and involves mixing your filtered water (water filtered by the first two pre-filters: carbon block and sediment) with the R.O water to achieve a TDS that's desirable to your needs and taste. Since the water sytem already includes the two pre-filters, the feed line between the pre-filter system and the R.O pump is tapped and as mentioned above the filtered water (not raw water), is mixed/blend with the purified R.O water in order to produce the desired TDS value.
KEY FEATURES
- Instant Purified Water around ∼2L/min - No tank required
- 2x 10" BIG BLUE housings with big blue filter cartridges
- For Drinking, Cooking, Coffee, Ice Machine
- High permeate water flow rate ∼2L/min with flow monitoring
- Smart Controller (Clean Water flow rate, filter replacement warning, System Info, etc.)
- Membrane Auto-Rinse Function for Max. Performance & Service Life
- Very Low Water Waste (1L Waste : 3L Clean)
- Leak protection (Electronic Water Stop Function)
- Big Size Faucet - SS 304, Lead Free
BENEFITS
Benefits of the Tankless BB R.O water system
- 4-stage water filtration system.
- Its reverse osmosis system works with high quality R.O 800GPD membrane (Krausen) to produce the best possible water quality.
- Its modern faucet can fit in any kitchen.
- Easy to install, but you can always ask for the help of our specialist.
- It is easy to maintain and allows you to easily change the filters by yourself (drop-in).
- It can work with low pressure (1 bar)
Advantages of direct flow water treatment systems over tank equipment:
- it works without a tank, so there is no stagnant water and no need for a UV lamp.
- water-saving, the ratio of wastewater to treated water reaches 2:1, making it economical.
- by-pass blending (mixing) valve allows the hardness to be adjusted so no mineral replenishment is required.
- it is more economical and easier to maintain, saving you money and time.
- since there is no tank, there is no risk of the tank becoming contaminated.
Advantages of booster pump operation:
- favorable wastewater-treated water ratio (about 2:1).
- operation in places with lower water pressure (smaller settlements, homesteads, 10th floor).
- higher purified water flow production.
TECHNICAL DATA
>Brand: KRAUSEN DE LUXE SERIES
>Membrane 1: Membrane 800G-3213 FOR RO SYSTEMS
>System type: Direct flow
>Usage: HOUSEHOLD / COFFEE SHOPS
>Pure water flow L /min: 1,6-2,1 l/min
>Drain water flow/min: 0,9-1,2 l/min
>Filtration levels: 4
>Prefilter cartridges size: BB 10''
>Product size W x L x H, mm: 450x200x600 mm
>Packing size W x L x H, mm: 485x245x650 mm
WARRANTY
3 years worldwide limited warranty (+ local regulations if applicable).
Product must be installed only by trained service professionals. Only original replacement parts, filter cartridges and accessories made by manufacturer may be used.
